Sanitary Positive Displacement Pump B0100
Ready To Ship in 7 to 10 Days
Pump Type: Rotary Lobe
Capacity: See chart below
3 HP stainless steel washdown motor, 208-230/460 volts AC 3-phase
Seal Type: Mechanical Seal
Elastomers: EPDM
Displacement : 0.081 GPR (0.31 LPR)
Motor RPM: 1750
Gearbox ratio: 10.38
Output RPM: 358
Port size : 2” Inlet/Outlet
Max pressure: up to 175 PSI
Frame: Is built in 304 stainless with Base Leveling Mount.
|
Flow
GPM |
RPM |
Pressure Psi |
Viscosity Centipoise @ 70°F |
Application Example |
| 24 | 350 | 50 | 3,000 | CORN SYRUP |
| 22 | 320 | 50 | 12,000 | BBQ SAUCE |
| 17 | 247 | 50 | 50,000 | KETCHUP |
| 11 | 160 | 50 | 100,000 | SOUR CREAM |
This information is provided for reference purposes only. To find out which pump is best for your application, please fill out our
MOTOR ENCLOSURE
TEFC “Totally Enclosed, Fan Cooled":
Totally enclosed motors are suitable for use in humid environments. The motor is dust-tight and has a moderate water seal as well.
Washdown:
Designed to withstand high-pressure wash-downs or other high humidity or wet environments. This does not allow for the motor to be submerged.
ASSEMBLY OPTIONS
|
OPTION 1 Pump Head Only |
|
|

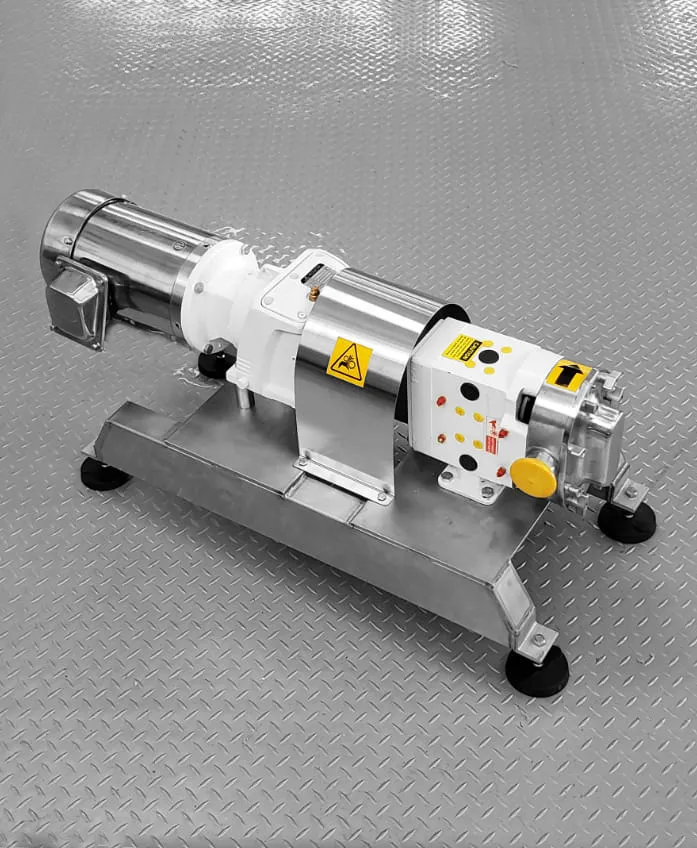

OPTION 2 Stainless steel wash-down motor, gearbox, pump, and stainless steel base frame. |
|
|

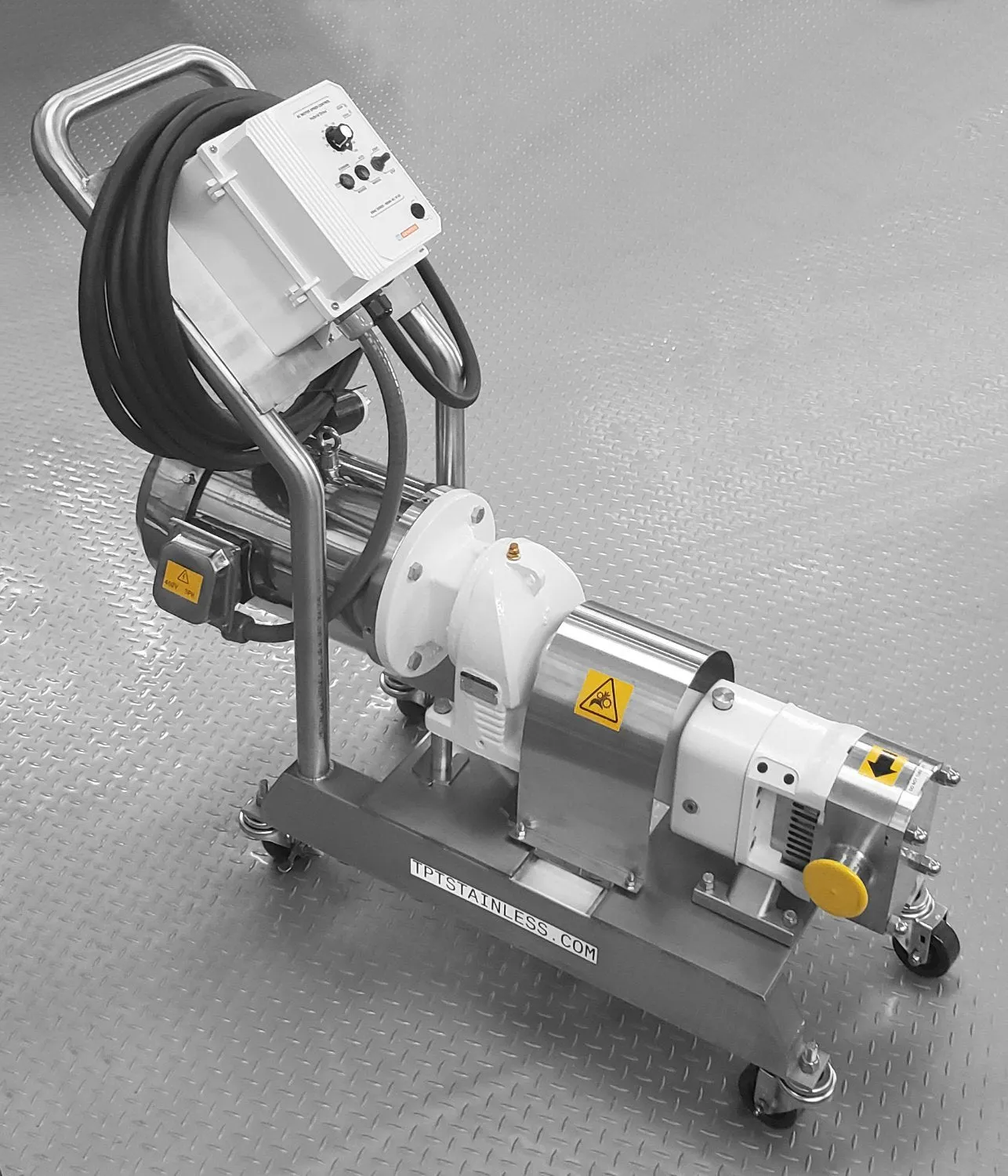

OPTION 3 Stainless steel wash-down motor, gearbox, pump, stainless steel cart and wash-down VFD. |
For more information .
